Pbije-S-6060

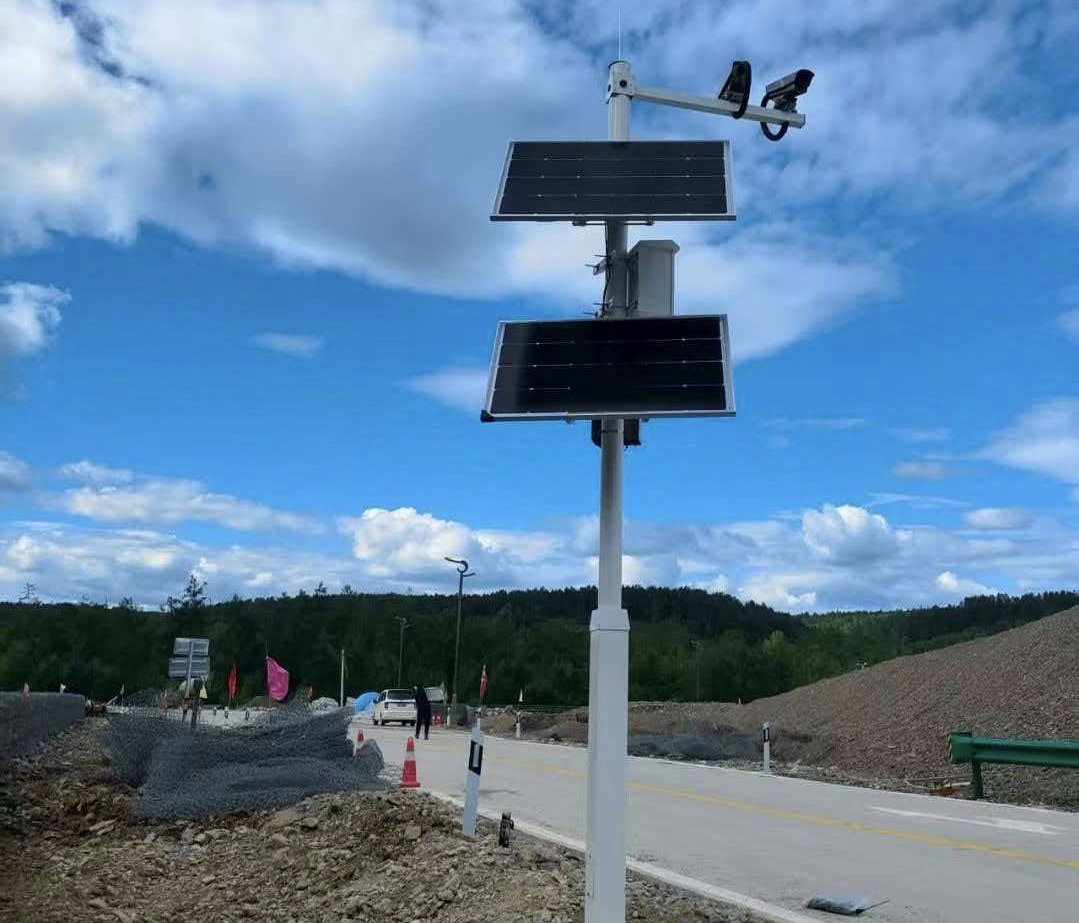

Field deployment of the Pbije-S-6060

AT A GLANCE

Key Specifications

Panel

60W

Battery

222WH

Output

DC 9V-12.6V/5A; Max 10A instantaneous

Weight

6.5KG

The Pbije-S-6060 pairs a high-efficiency monocrystalline panel with a separate lithium battery and control unit, so the panel can face the sun while the battery box hangs shaded on the pole. Output is a stable DC 9–12.6V at 5A continuous (10A instantaneous), which covers the mainstream 4G bullet cameras, mini PTZ domes and RTU terminals used in off-grid monitoring projects.

PRODUCT VIEWS

Front, Back & Side

Engineering drawings of the Pbije-S-6060 — mounting brackets, controller and cabling.

Front View

Back View

Side View

TECHNICAL SPECIFICATIONS

Full Parameter List

Official specification sheet of the Pbije-S-6060.

Appearance Specs

Total System Weight

6.5KG

Single Set Inner Box Dimensions

815×200×435MM

Six-Set Outer Box Weight

21.2KG

Six-Set Outer Box Dimensions

655x480x845MM

Solar Panel

Solar Panel Power

60W (error margin within 5%)

Photovoltaic Conversion Efficiency

23.7% and above

Operating Temperature

-45°C to 85°C

Protection Rating

IP65

Maximum Operating Current

4.61A

Open-Circuit Voltage

15.1V

Optimal Operating Voltage

13.2V

Battery

Battery Capacity

2AH × 30 cells, Total: 60AH, Total: 222WH

Battery Type

Digital Ternary Lithium Battery

System Voltage

DC 9V-12.6V

Discharging Temperature

-10°C to 60°C

Battery Lifespan

70% capacity remaining after 500 full charge/discharge cycles

Control System & Protection

Output

DC 9V-12.6V/5A; Max 10A instantaneous

Charging Input

DC 12-18V/5A

Max Charging Capability

Total 5A, approx. 60W

Max Discharging Capability

Continuous 5A, approx. 60W

S SERIES FAQ

Frequently Asked Questions

What output does the S series provide?

DC 9–12.6V at 5A continuous, with up to 10A instantaneous — enough for one 4G camera plus auxiliary loads, or a small RTU and sensor cluster.

Is it suitable for extreme weather?

Yes. The panel is rated IP65 and operates from -45°C to 85°C; the battery discharges from -10°C to 60°C, covering desert, tropical and cold-climate installations.

How is it packed for shipping?

Each set ships in an individual inner box; six sets fit one outer carton for project delivery. Exact carton sizes and weights are listed in the specifications below.
